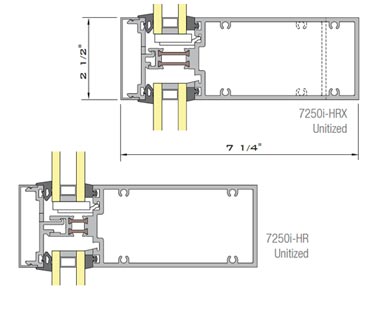

INvision™ HR and HRX Unitized Window Wall and Curtainwall
- 6-1/4", 6-1/2" and 7-1/4" frame depth with polyamide thermal barrier
- Narrow 2 1/2” mullion sightlines
- Transitions seamlessly from curtainwall to window wall
- Pressure-equalized rain screen design
- 15 psf static and dynamic water resistance

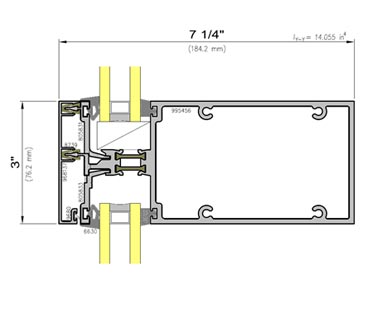

INvision™ 7250 and 7250i-UW Unitized Curtainwall
- Engineered to meet typical institutional buildings’ span and wind load requirements
- Interlocking frame design accommodates seismic, live load and thermal building movements
- Two lines of defense against air and water infiltration- Pressure-equalized rain screen design
- Water control and drainage at each unit
- Two-level thermal barrier frames (7250i-UW) or thermally-improved (7250-UW)
INvision™ RX Unitized Window Wall
- 4 3/4” or 6 1/4” frame depth
- Thermally improved
- Captured or vertical structural glazed
- Narrow 2 1/4” sightlines

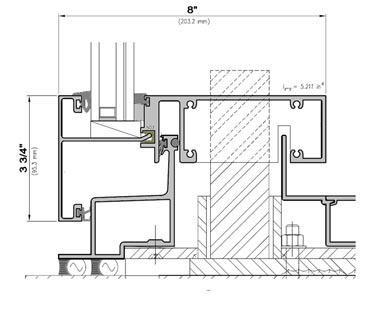

INvision™ 8000 and 8000i Blast Unitized Wall
- Designed for compliance with GSA ISC Security Design Criteria and Department of Defense UFC 4-010-01 requirements
- Blast performance exceeding 10 psi peak pressure, 89 psi-msec impulse
- Accepts a variety of security glazing types
- Interlocking frame design accommodates seismic, live load and thermal building movements
- Pressure-equalized rain screen design
Storefront and Entrances
Wausau's architectural aluminum entrances, storefronts, mid-rise curtainwalls and operable windows are designed and tested for commercial construction in the U.S. Entrance doors for retail, educational and institutional applications have a variety of standard sizes and hardware options for glass thicknesses up to 1 inch. Storefronts for first-floor installation of 1/4- or 1-inch insulated glass also offer a variety of thermally improved systems. Pressure-bar type curtainwall systems for up to six stories, and project-out vent and casement windows, allow a single source for most projects.
Anodize finish colors are available in Clear and in earth tones ranging from Champagne to Black, plus 15 standard painted colors are offered in 70% Kynar® composition for up to 10-year standard guarantee.
Learn more about our doors and frames, door hardware, storefront framing, curtainwall window, finishes and impact-resistant products.
